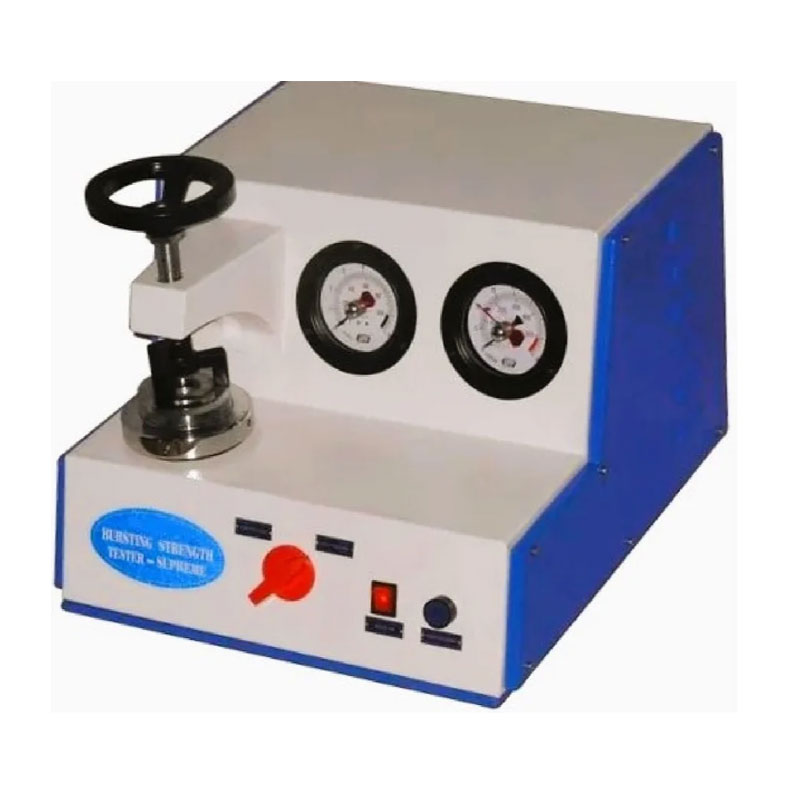

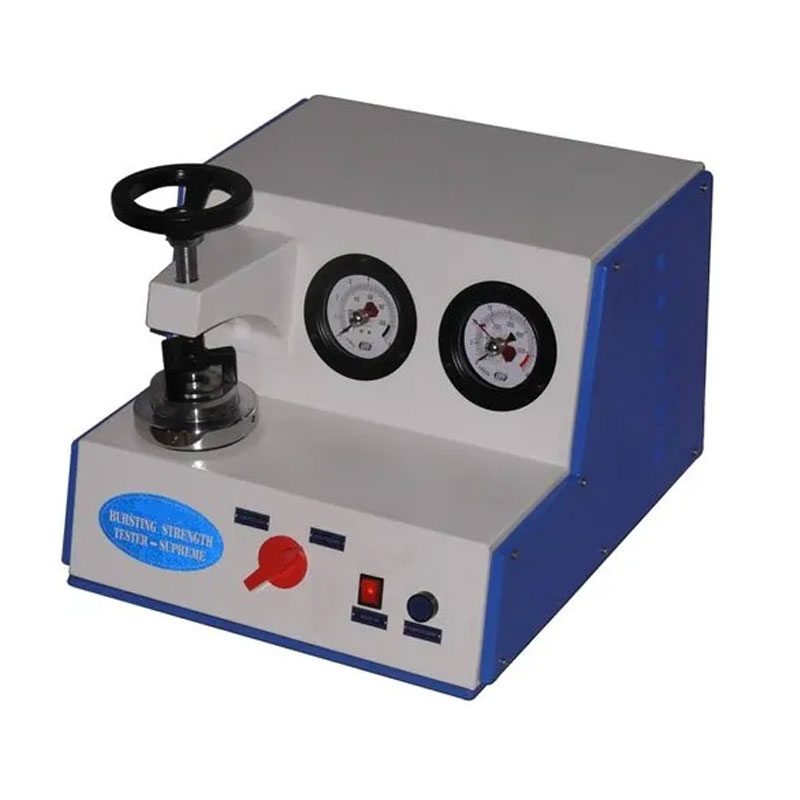

Bursting Strength Tester
The Bursting Strength Tester is widely used to evaluate a material’s resistance to rupture. During testing, the specimen is securely clamped between two circular rings and subjected to gradually increasing pressure through a rubber diaphragm. This diaphragm expands under controlled hydraulic force until the specimen bursts. The pressure recorded at the point of rupture represents the material’s bursting strength.
Description
Key Features
- Simple, open-type construction with body-mounted pressure gauges and panel-mounted control switches
- Dual measurement units: Kg/cm² and PSI
- Single push-button operation for easy testing cycles
- Dual pressure gauges for enhanced accuracy
- Lazy hand (maximum pointer) to capture peak burst value
- Heavy-duty industrial Bourdon pressure gauges for long-lasting performance
- Stainless steel valves allow easy switching between gauges
Dimensions
- Depth : 546 mm (21.5 in.)
- Height : 698 mm (27.5 in.)
- Width : 838 mm (33 in.)
Weight
- Net weight : 82 kgs
- Gross Weight : 135 kgs
Capacity
- Pressure Gauge 1: 0-7 Kg/Cm2
- Pressure Gauge 1: 0-70 Kg/Cm2
Accessories
- C spanner, 3 spare diapgragms, 250 ml
- topping up fluid, 1 no. calibration foil
- supplied spare with the machine
Standard Compliance
- BS 3424/3137, ASTM D 3786/ASTM D 774, 2758/2559/3303/3669 standards
Connections
- Electrical : 1 phase, 230 V AC, 50 Hz.
Consumables
- Rubber Diaphragm & Calibration Foil.
| Brand | IKON INDUSTRIES |
| Model Number/Name | IK/BST/01 |
| Usage/Application | TO CHECK BURST VALUE |
| Load Capacity | 0-70 KG/CM2 |
| Pressure Range | 0-70 KG/CM2 |
| Display Type | ANALOG |
| Accuracy | 1 KG/CM2 |
| Power | 1 phase, 230 V AC, 50 Hz. |
