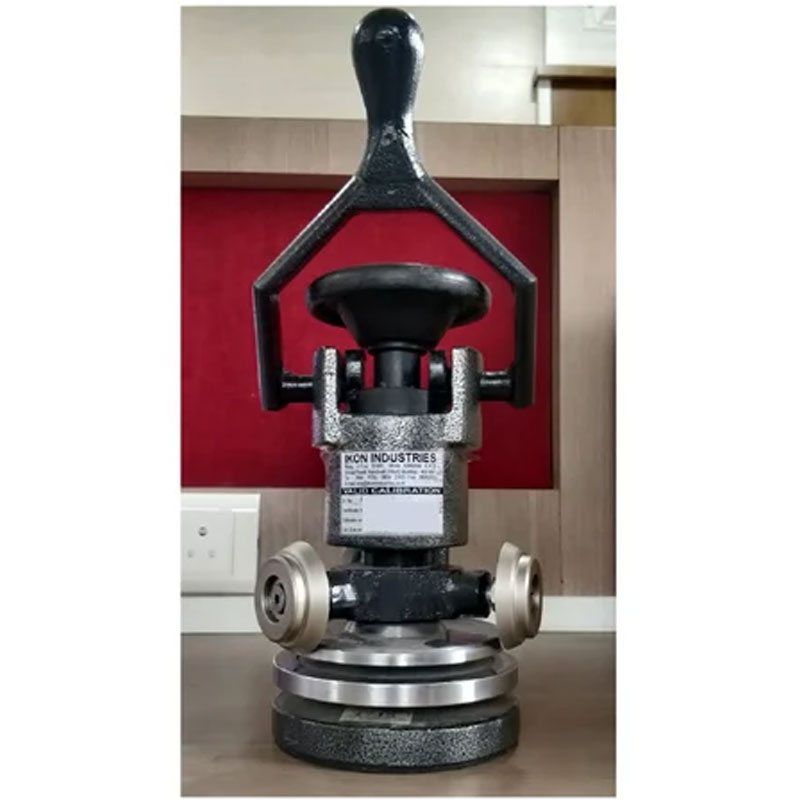

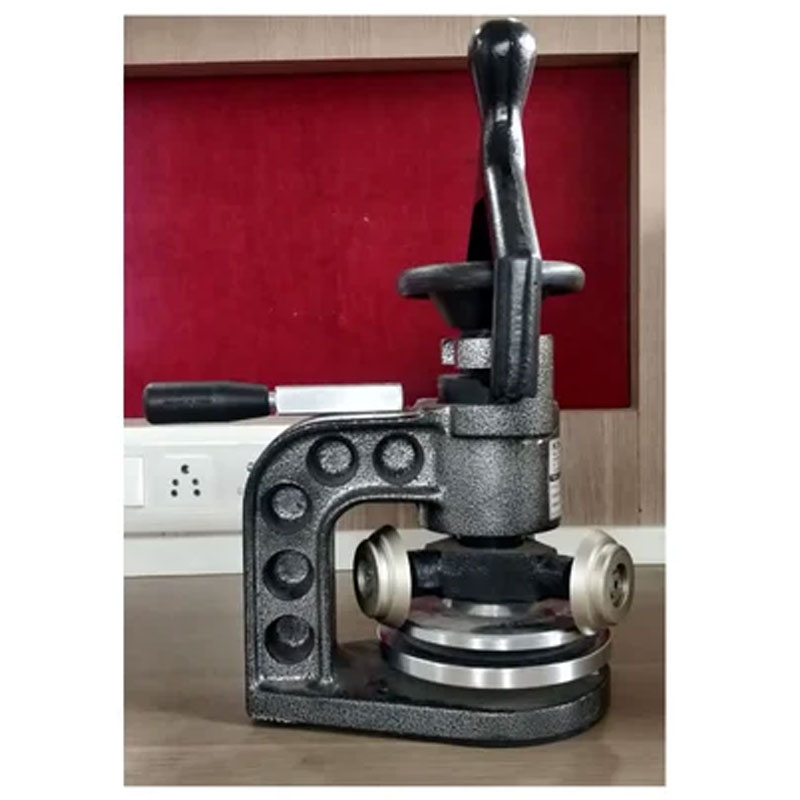

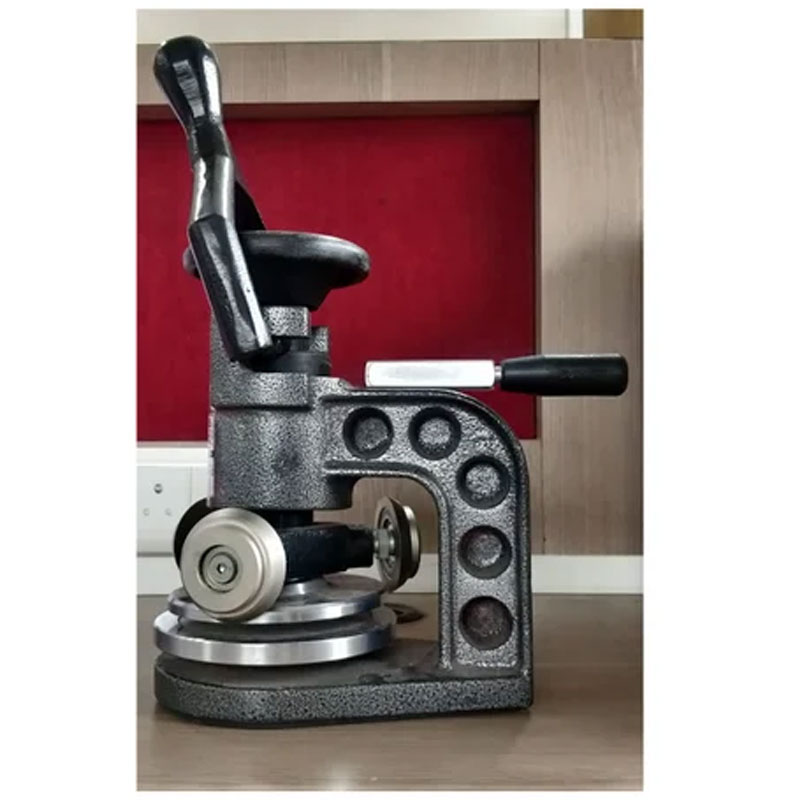

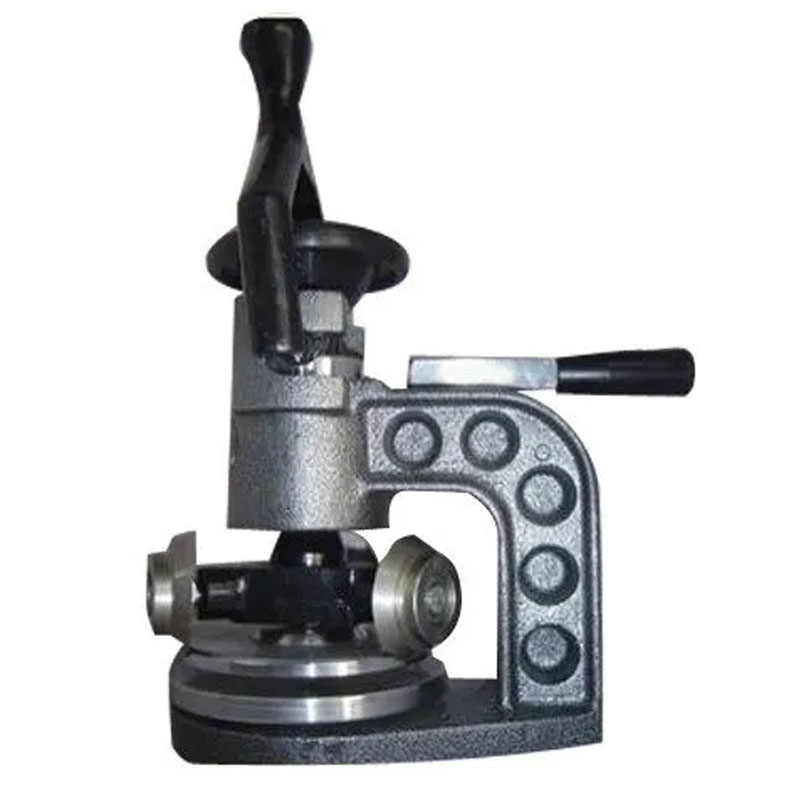

Hydraulic GSM Cutter
The Hydraulic GSM Cutter is a fabric testing instrument used in offline quality assurance to determine the GSM (grams per square meter) of textile materials. GSM represents the weight and density of fabric and is a key parameter in textile quality control.
Description
Testing Method
- Cut the fabric using the hydraulic GSM cutter to obtain a 100 cm² sample.
- Weigh the cut specimen on an electronic balance.
- Multiply the measured weight by 100 to calculate the GSM value.
Example
If the sample weight is 2.51 grams, then:
GSM = 2.51 × 100 = 251 GSM
This indicates that the fabric weighs 251 grams per square meter.
The hydraulic GSM cutter provides a fast, accurate, and repeatable method for determining fabric weight, helping manufacturers maintain consistent quality standards.
