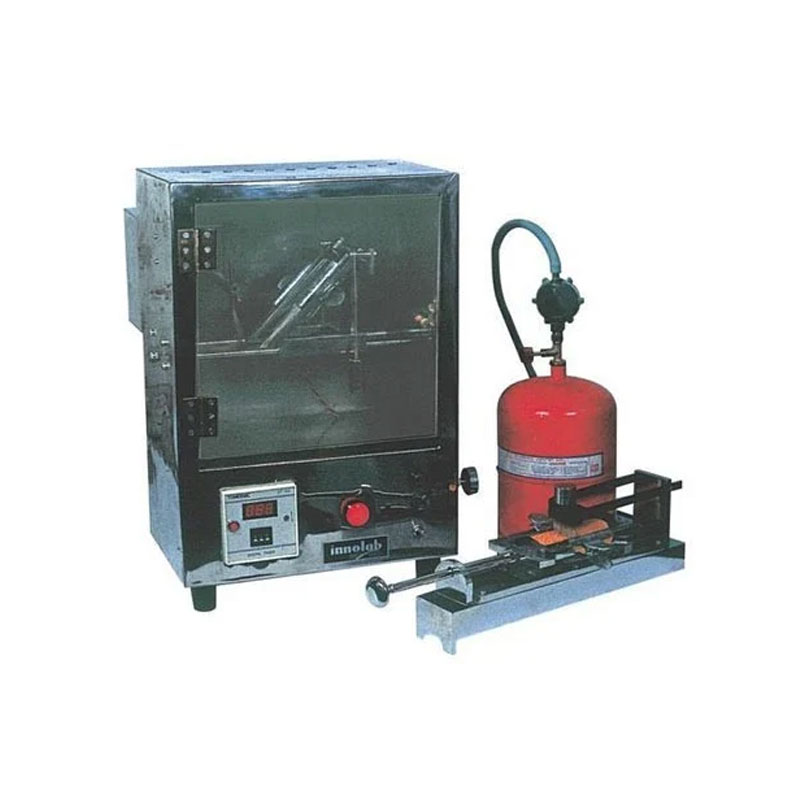

The Digital Flammability Tester is designed to evaluate the flammability characteristics of textile materials in a controlled environment. The instrument features a stainless steel safety shield of specified dimensions, open at the top and fitted with a transparent sliding front window for easy observation. A precision opening is provided at the lower front for burner adjustment.

A specially sized Bunsen burner is mounted at the base of the shield with a sliding mechanism for accurate flame positioning.

At the top of the instrument, a vertical clip assembly holds the specimen securely. Two stenter pin plates fitted with pointer pins are mounted horizontally on either side of the shield to prevent movement of the lower end of the specimen during flame application.

The specimen holder consists of two U-shaped stainless steel plates that clamp the fabric at the top and sides while leaving the bottom free. This arrangement provides an exposed test area of 50 × 305 mm. During testing, the holder is positioned vertically inside a draught-free chamber so that the ignition flame strikes the specimen centrally, 19 mm above the lower edge.

All metal components are finished with bright chrome plating and polished stainless steel surfaces, ensuring corrosion resistance and long service life.

Note

Gas supply and gas cylinder are not included with the instrument.
