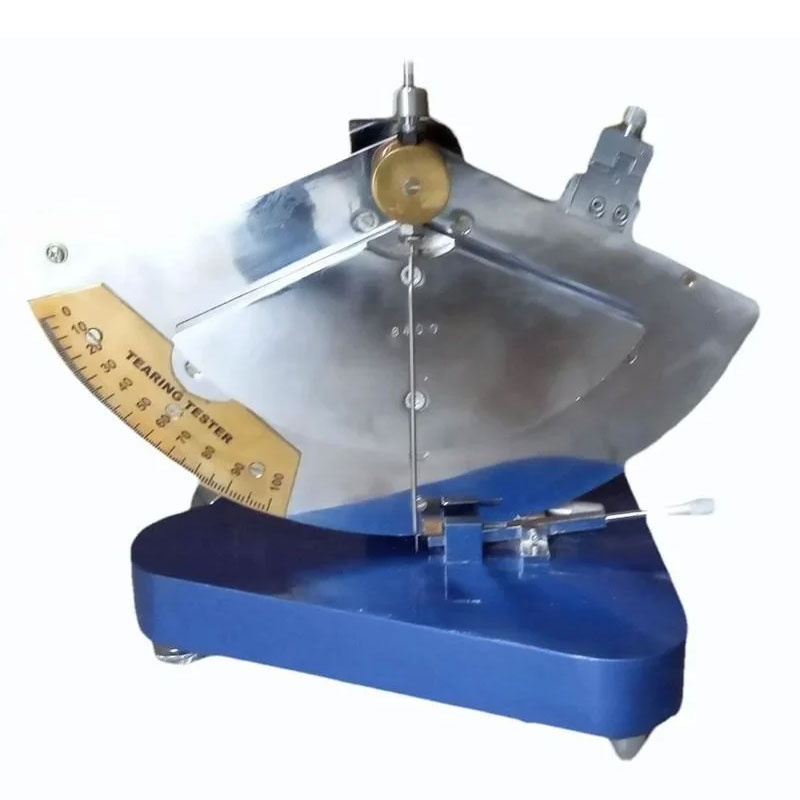

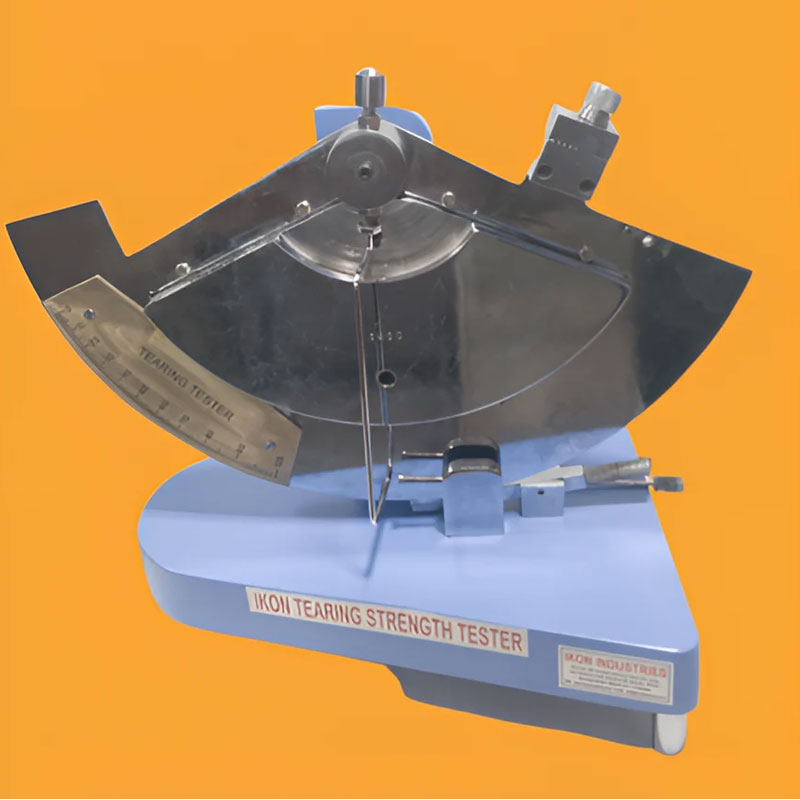

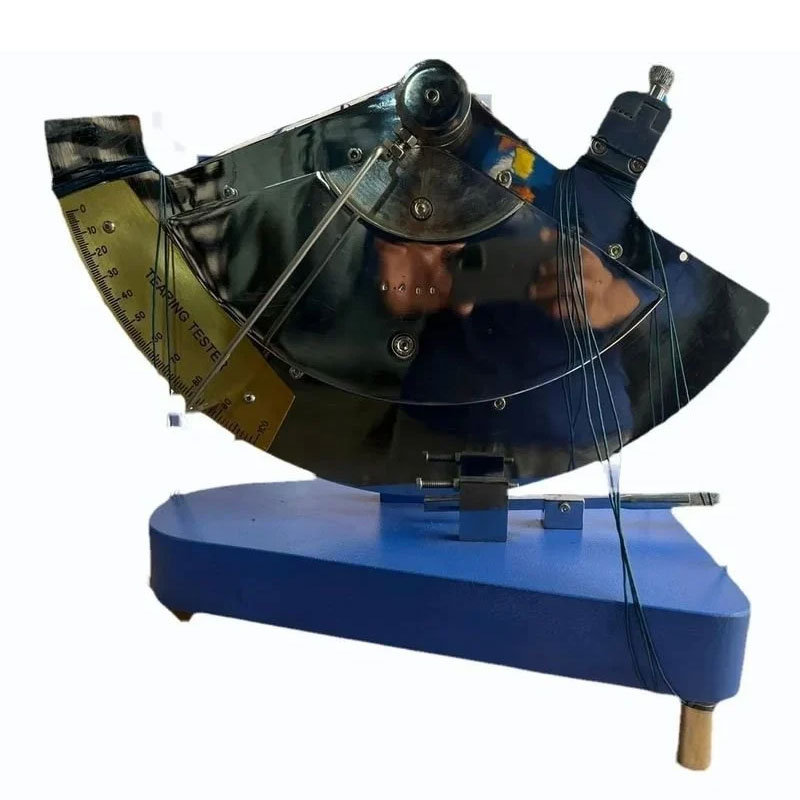

Tearing Strength Tester
The Tearing Strength Tester is designed to accurately measure the tearing resistance of both knitted and woven fabrics. Built with a modern, sophisticated design, this tester combines durability with precise performance for reliable textile testing.
Description
Key Specifications & Features
- Maximum capacity: 6.400 kg
- Equipped with an adjustable cutting knife for consistent sample preparation
- Three selectable test capacities: 1.600 kg, 3.200 kg, and 6.400 kg, suitable for different fabric types
- Contemporary design with sturdy construction
- Supplied complete with accessories, including three calibration weights
- Delivered with inspection and calibration certificates for quality assurance
- Net weight: 28 kg (61.6 lbs)
Dimension:
- Length Depth Height: 520 mm 225 mm 560 mm., 20.5 Inch 10 Inch 22 Inch
- Related Standards: BS 4253,ASTM D 1424-96,DIN 53862,and BSEN 13937 standards
| Equipment type | Fabric tester |
| Capacity | 6400 |
| Automation | Manual |
| Display | Analog scale |
| Brand | Ikon |
| Scale Reading | 0-100 |
| Weight | 40 Kgs |
| Slit Size | 20mm |
| Size | 18X12X12inches |
| Material | Mild Steel |
