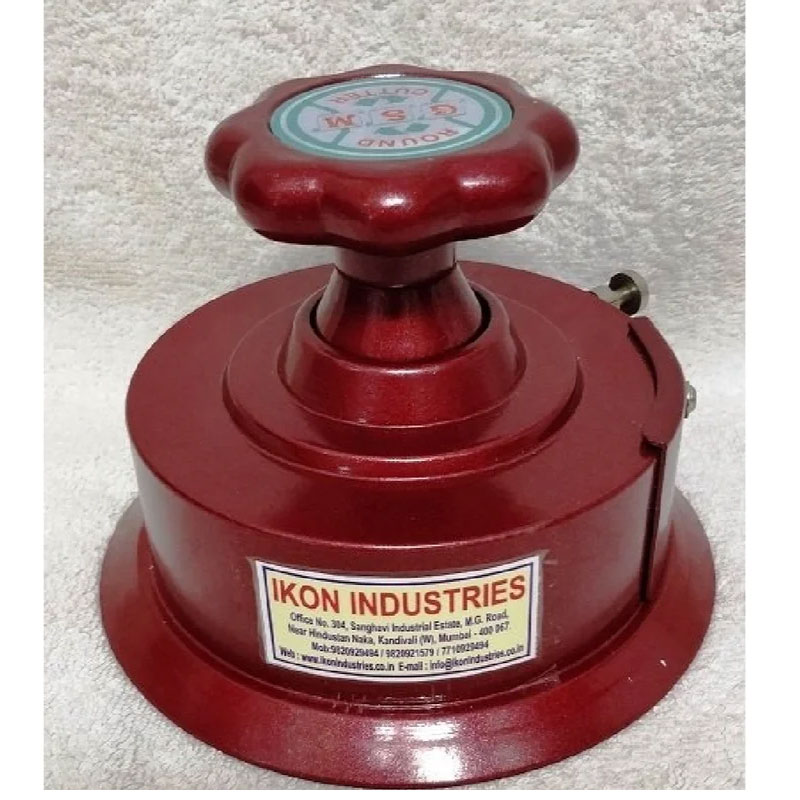

GSM Cutter
The GSM Cutter is a fabric testing tool used in offline quality assurance to determine the GSM (grams per square meter) of textile materials. GSM indicates the weight and density of a fabric and is a key parameter in textile quality control.
Description
Testing Procedure
- Cut the fabric using the GSM cutter, which produces a 100 cm² sample.
- Weigh the cut specimen using an electronic balance.
- Multiply the measured weight by 100 to calculate the GSM value.
Example
If the weight of the cut sample is 2.51 grams, then:
GSM = 2.51 × 100 = 251 GSM
This means the fabric weight is 251 grams per square meter.
The GSM cutter provides a quick and accurate method for determining fabric weight, helping manufacturers maintain consistent quality standards.
| Sample Cut | 113 mm |
| Shape | Round |
| Material | Mild Steel |
| Brand | Ikon Industries |
| Warranty | 1 Year |
| Packaging Size | 25 x 25 x 15 cms |
| Radius | 113 mm |
Minimum order quantity: 01 Unit
