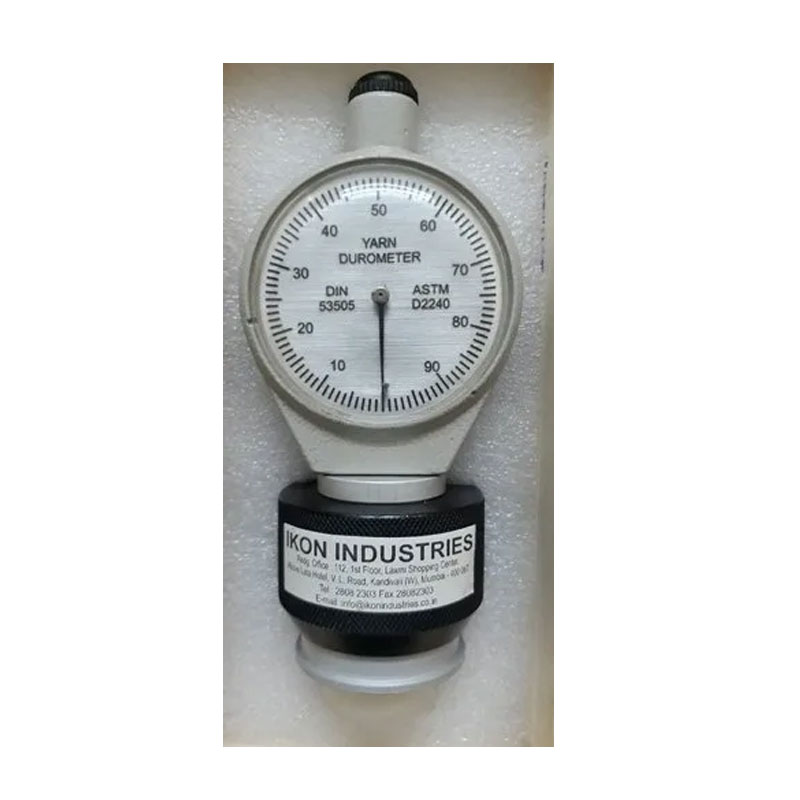

Yarn Durometers For Textiles
Yarn Durometers are precision instruments used to measure the hardness and compression characteristics of yarns in textile applications. Designed for accurate and consistent readings, these instruments help evaluate yarn quality, uniformity, and performance. Built with robust construction and easy-to-use controls, Yarn Durometers are ideal for textile laboratories, spinning units, and quality control departments.
Category: Yarn Testing Instruments
Description
Yarn Durometer – Technical Specifications
- Scale Diameter: 56 mm
- Pressing Force (Spring-Loaded Outer Ring): 12.5 N
- Measuring Spring Force: 0.55 – 8.065 N
- Reading Range: 0 – 100 Shore A
- Working Radius: 55 mm
- Working Face: 45 mm
- Indentation Body (Ball Diameter): 5 mm
- Depth of Indentation: 0 – 2.5 mm
- Dimensions: 47.5 (L) × 55 (W) × 117.5 (H) mm
- Weight: 415 g (0.913 lbs)
| Brand | IKON INDUSTRIES |
| Display Type | ANALOG |
| Accuracy | 1 SHORE |
| Weight | 500 GRMS |
| Measuring Range | 0-100 SHORE |
| Warranty | 1 YEAR |
Minimum order quantity: 1 Piece
