Twist Tester

Twist Tester

As a customer-focused organization, we offer a wide range of Single Yarn Twist Testers designed for accuracy, durability, and reliable performance. These testers are available at highly competitive prices to meet diverse industry requirements.

Key Features:

  • Easy to use
  • Excellent performance
  • Low maintenance
  • Fine finish
  • Long service life
  • High efficiency

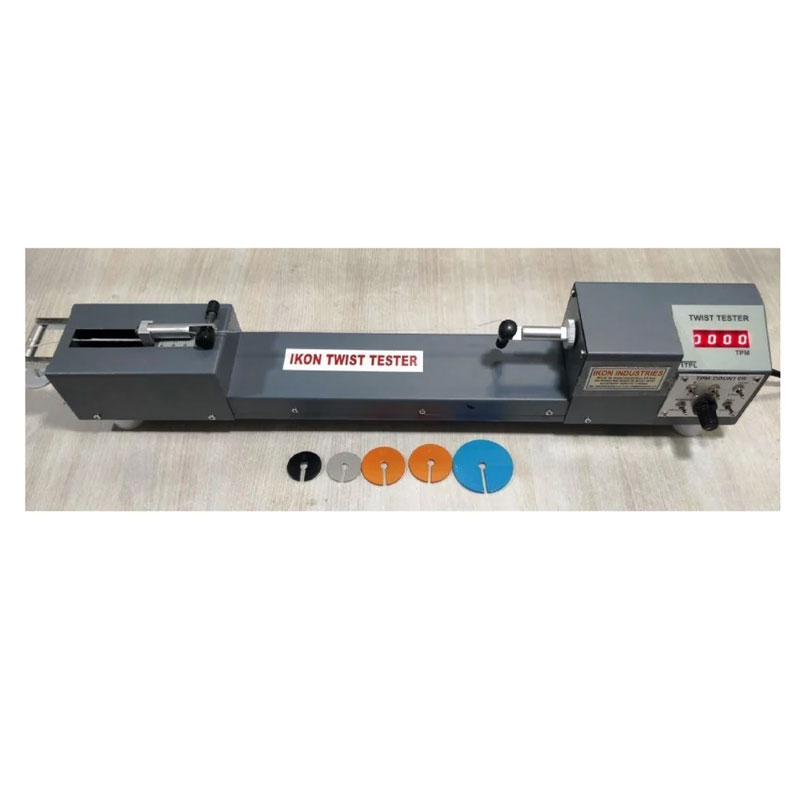

The Single Yarn Twist Tester is used to prepare leas of yarn with smooth, precision-engineered components ensuring accurate and consistent results. It is supplied with wheels of 1 meter or 1.5 yards perimeter. The bobbin holding stand accommodates bobbins up to 100 mm in diameter, and up to five leas can be prepared simultaneously.

The instrument is supplied complete with all necessary accessories along with inspection and calibration certificates.

Description

Technical Details:

  • Weight: 36 kg (79.2 lbs)

Dimensions (Main Unit):

  • 690 mm (L) × 525 mm (D) × 675 mm (H)
  • 27” × 20.6” × 26.5”

Dimensions (Alternate Model):

  • 440 mm (L) × 375 mm (D) × 520 mm (H)
  • 17.3” × 14.75” × 20.5”

Relevant Standards:

  • ASTM D1907 / D2260
  • BS 2010
  • DIN 53830
Automation Grade Semi-Automatic
Power 230V
Brand IKON INDUSTRIES
Material MILD STEEL
Weight 36Kg (79.2 lbs)
Frequency ASTM D 1907/2260,BS 2010,DIN 53830 standards.
Model Number IK/SYTT/01
Grade 1


Minimum order quantity:
1 Piece
