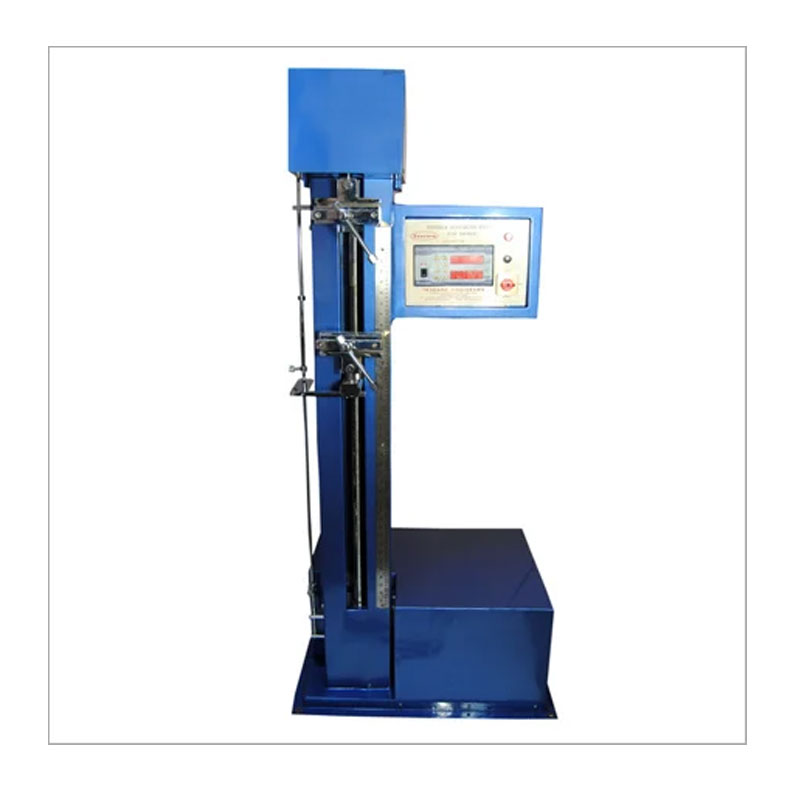

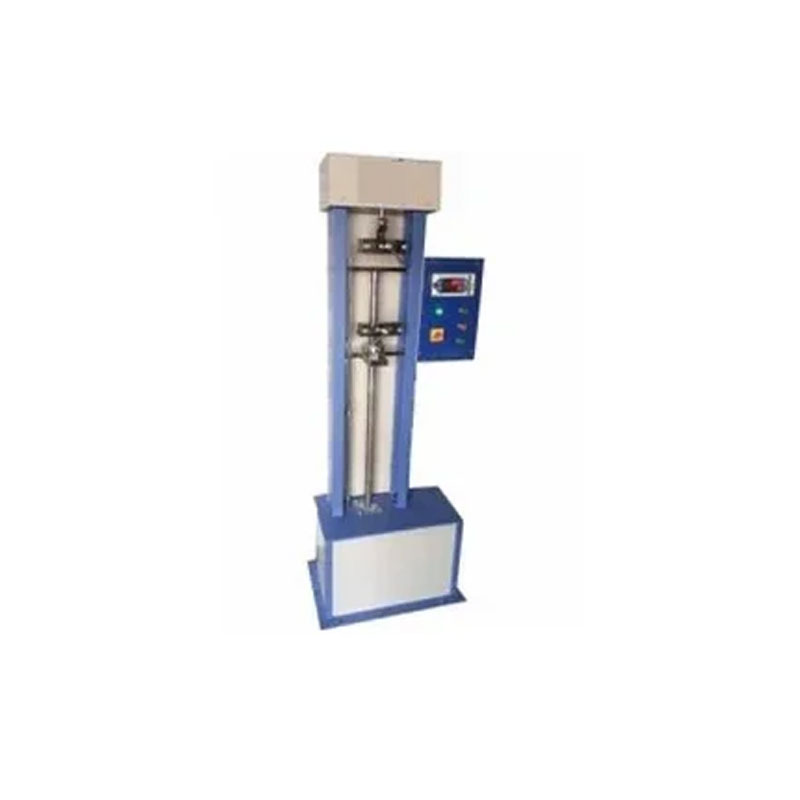

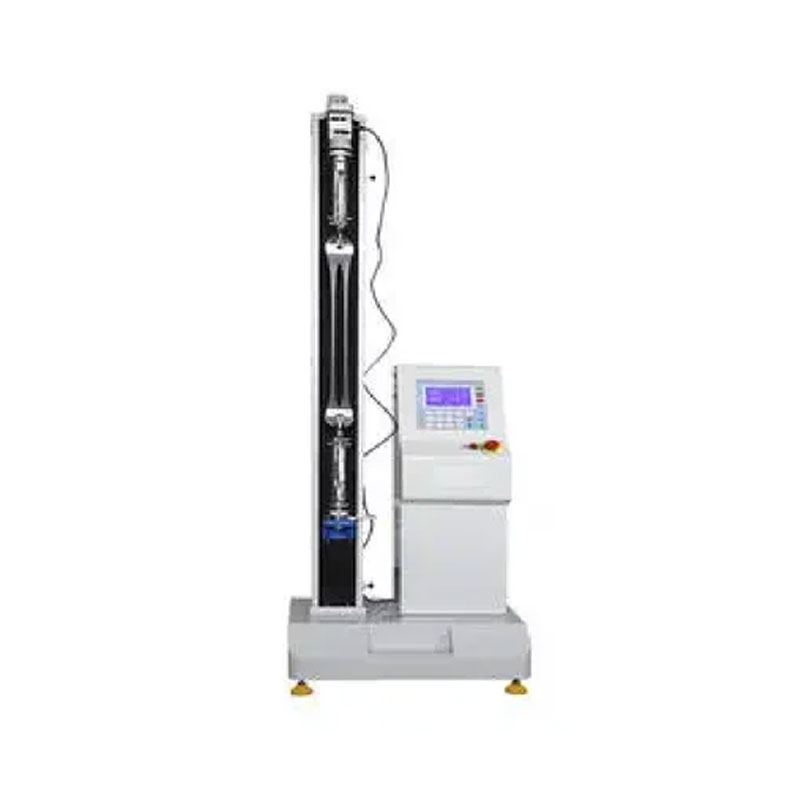

Fabric Tensile Strength Tester
The Fabric Tensile Strength Tester is designed to accurately measure the tensile strength of textile materials. Built on a rigid dual-column load frame, the system ensures stable operation and reliable test results for laboratory and quality control applications.
Description
Technical Specifications
- Construction Type: Two-column supported load frame
- Maximum Force Capacity: 500 kg
- Crosshead Drive Mechanism: Screw-and-nut system powered by a fixed geared motor
- Crosshead Speed: Fixed at 300 mm/min (other speeds available on request)
- Force Measurement: Load cell transducer
- Measuring Range: 0–500 kg
- Resolution: Approximately 25 grams
- Accuracy: ±0.5% of full-scale deflection (FSD)
- Display: Backlit alphanumeric LCD digital display showing force in kg or N, with peak force memory
- Maximum Travel: Approximately 300 mm
| Automation Grade | Automatic |
| Brand | IKON INDUSTRIES |
| Material | MILD STEEL |
| Weight | 100 KG |
| Power | 15 AMP |
| Height | 6 FEET |
| Frequency | 50 HZ |
| Voltage | 230 VOLT |
| Accuracy | +/- 0.5% of FSD |
| Capacity | 500 Kg. |
| Phase | 1 Phase. |
| Speed | 300 mm/min |
