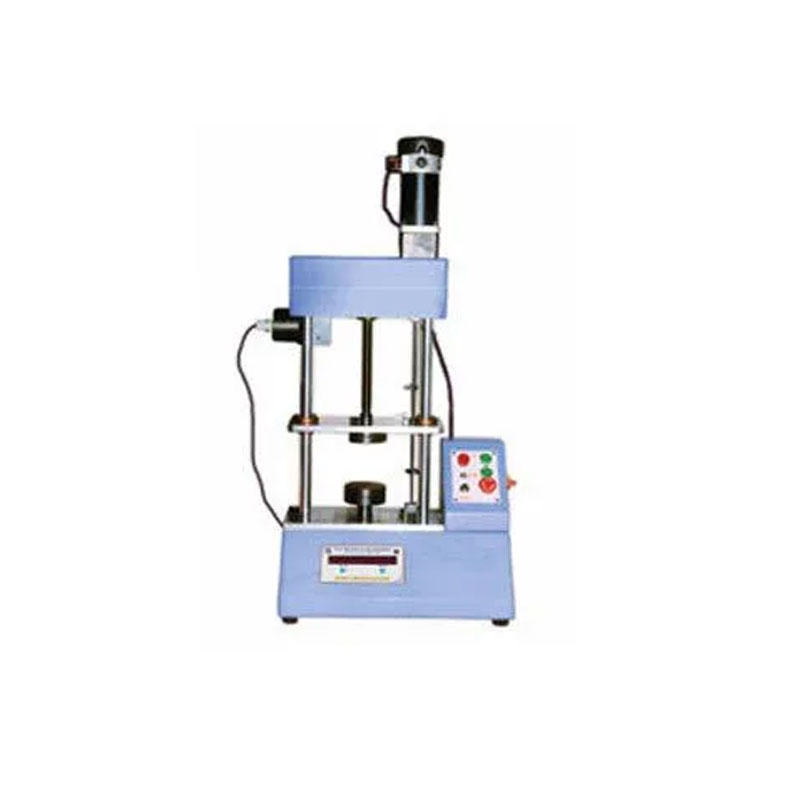

Digital Spring Testing Machine
The Ikon Digital Spring Testing Machine (Motorised) is designed for fast, precise, and reliable testing of both tension and compression springs. With automated loading operation, it ensures consistent test conditions and improved efficiency for quality control, inspection, and production environments.
This microprocessor-based system delivers accurate measurement of load and displacement, making it suitable for a wide range of spring testing applications.
Description
Features
- Microprocessor-controlled unit
- Force measurement accuracy of ±1% of indicated load or ±0.5% of full-scale load (whichever is higher)
- Quick and highly accurate testing
- Interchangeable load cells for flexible testing capacities
- Digital display of load and displacement values
- Optional dot-matrix printer interface
- Optional RS-232 computer interface with Windows-based software
Optional Accessories
- Digital vernier scale with 0.01 mm resolution (6″ or 12″) for displacement measurement
- Rotary encoder with separate digital display (0.1 mm or 0.01 mm resolution)
- 9/24-pin dot-matrix printer interface
- Serial interface hardware with data transfer software for PC connectivity
- Motorised loading system for automated operation
| Model Name/Number | IK-SPT-02 |
| Brand | IKON INDUSTRIES |
| Accuracy | 1% |
| Maximum Capacity | 1000 KGS |
| Frequency | 50Hz |
| Least Count | 1 GM |
| Material | MILD STEEL |
| Range | 0-1000 KGS |
