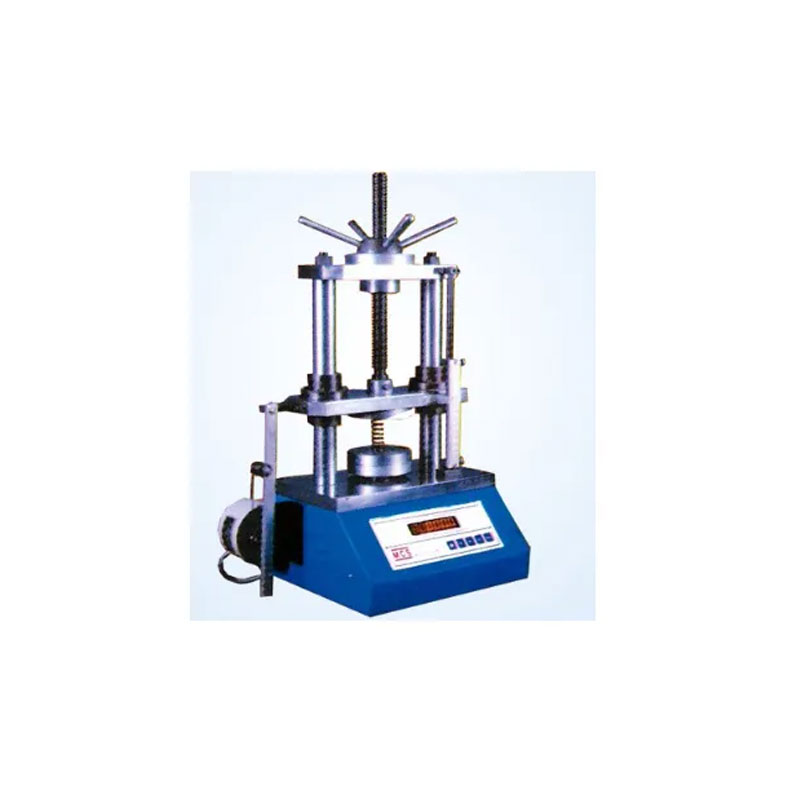

Digital Spring Testing Machine Hand Operated
The Ikon Digital Spring Testing Machine (Hand Operated) is designed for fast and precise testing of both tension and compression springs. It provides accurate load and displacement measurement, making it ideal for quality control, R&D, and production environments.
This microprocessor-based system ensures reliable performance with high measurement accuracy and user-friendly operation.
Description
Features
- Microprocessor-based control unit
- Force measurement accuracy of ±1% of indicated load or ±0.5% of full-scale load (whichever is higher)
- Quick and precise testing results
- Interchangeable load cells for flexible testing ranges
- Digital display of load and displacement (modulus data)
- Optional dot-matrix printer interface
- Optional RS-232 computer interface with Windows-based software
| Model Name/Number | IK-SPT-01 |
| Brand | IKON INDUSTRIES |
| Accuracy | 1% |
| Frequency | 50HZ |
| Least Count | 1 GM |
| Material | MILD STEEL |
| Maximum Capacity | 1000 KG |
Minimum order quantity: 01 Piece
