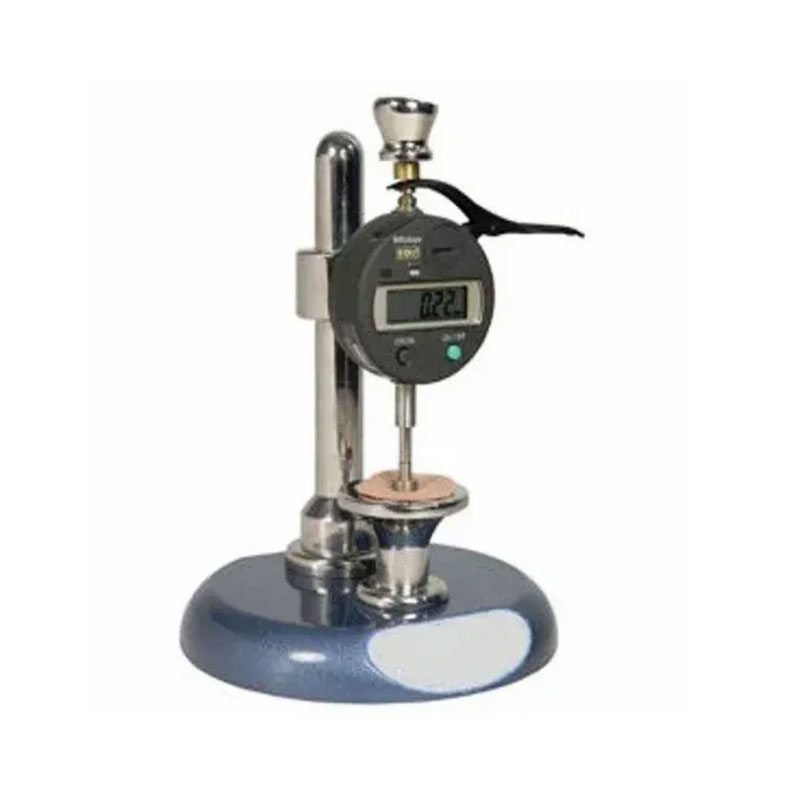

Digital Fabric Thickness Tester
The Digital Fabric Thickness Tester is designed to accurately measure fabric thickness in millimeters, making it ideal for textile quality control and laboratory applications.
Description
Key Features & Specifications
- Measures fabric thickness with a maximum capacity of 10 mm and an accuracy of 0.01 mm
- Digital gauge provides precise, easy-to-read measurements in millimeters
- Durable stainless steel anvil ensures long equipment life
- Standard load applied on the pressure foot for consistent and accurate results
- Supplied complete with all accessories, including two different types of pressure feet
- Delivered with calibration and inspection certificates
- Main unit assembly weight: 3.4 kg (7.5 lbs)
| Model Number/Name | IK/DFTT/01 |
| Display Type | DIGITAL |
| Brand | IKON INDUSTRIES |
| Application | Laboratory |
| Material | MILD STEEL |
| Accuracy | 0.01MM |
| Least Count | 10MM |
Dimension main unit:
| Diameter | Height |
| 209.5 mm | 152 mm. |
| 8.25 Inch | 6 Inch |
