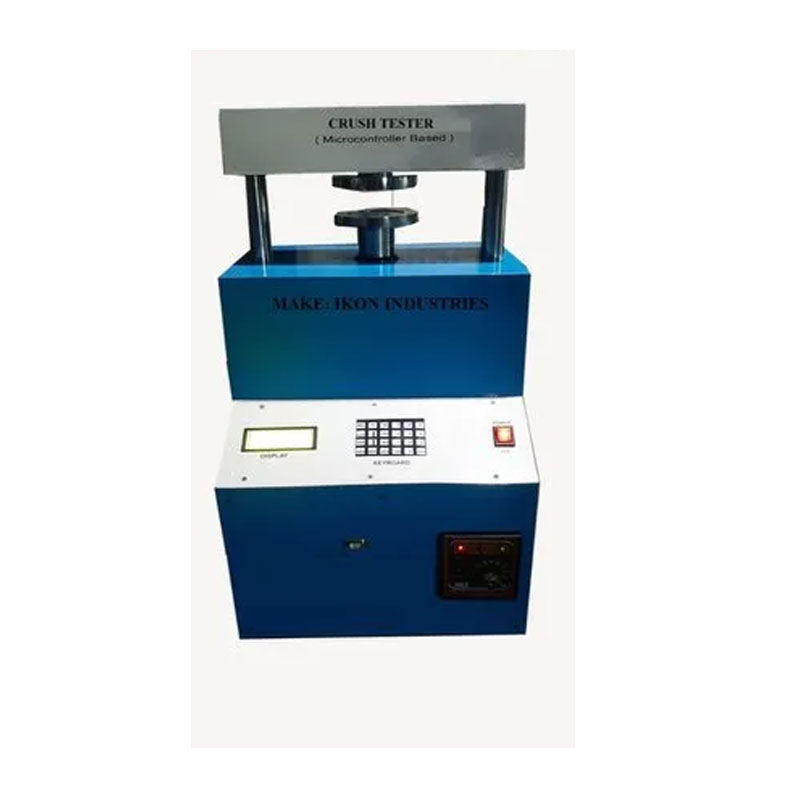

Crush Tester
The IKON Crush Tester is designed for evaluating the compressive strength properties of paper and paperboard. It is suitable for conducting Ring Crush Test (RCT) for paper with thickness between 0.15 mm and 1 mm, Edge Crush Test (ECT), Flat Crush Test (FCT), and Ply Bond Adhesion Test (PAT) for boards. The instrument can also be used for Corrugating Medium Test (CMT) on tubes with diameters less than 60 mm.
Description
Features:
- Four test modes available: RCT, ECT, FCT, and PAT
- Microcomputer-controlled system with automatic measurement and intelligent test result evaluation
- Automatic return after completion of test
- Real-time display of test curve
- Automatic data collection, calculation, analysis, storage, and printing
- LCD display with user-friendly PVC operation panel
- Synchronous motor drive for precise and uniform pressure application
Technical Data:
- Accuracy: ≤ ±1%
- Platen parallelism: ≤ 0.05 mm
- Compression speed: 12.5 ± 1 mm/min
Ideal for paper mills, packaging manufacturers, and quality control laboratories requiring accurate compression strength testing.
| Voltage | 230V |
| Brand | IKON INDUSTRIES |
| Weight | 140 |
| Load Cell Capacity | 300 KGF |
| Load Cell Sensitivity | +-0.2% Full Scale |
| Motor Power | 1/2 HP 1440 RPM |
| Platen Size | 100 MM Dia. |
| Dimensions in MM (LxWxH) | 525x575x762 MM |
Minimum order quantity: 01 Unit
