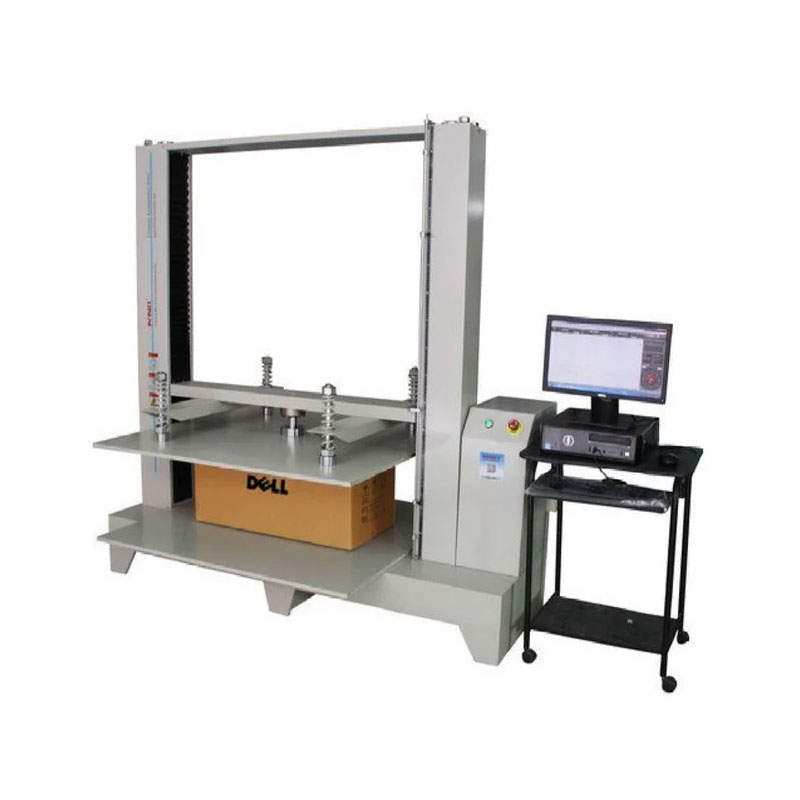

Box Compression Tester (Electronic Model)
The Electronic Box Compression Tester is designed to determine the compression resistance of corrugated and non-corrugated boxes. It provides accurate evaluation of box strength under compressive load, ensuring product safety during stacking, storage, and transportation.
The instrument features a digital display for load and deformation measurement. It is equipped with memory to retain peak values, automatic or manual zero setting, and built-in overload and over-travel protection for safe and reliable operation.
Description
Specifications:
- Platen size: 600 × 600 mm / 1000 × 1000 mm
- Load capacity: 0–1000 kg / 0–2000 kg
Optional Feature:
- Dedicated Windows-based software for interfacing with computer and printer
- Computer-based control, data collection, and data analysis
- Graphical representation of load and deformation
- Statistical analysis including arithmetic mean, maximum, minimum, coefficient of variation (CV), and peak values
- Unit selection: kgf or kN
- Real-time graph display and test series presentation
Dimensions: 58” × 45” × 76”
Ideal for packaging industries, corrugated box manufacturers, and quality control laboratories requiring precise compression strength evaluation.
| Capacity | 0-1000,0-2000KGS |
| Display Type | Digital |
| Usage/Application | to determine box compression strength |
| Least Count In Kn | KN/ KGF |
| Material | Mild Steel |
| Phase | 3 Phase |
| Frequency | 50 HZ |
| Automation Grade | Automatic |
| Brand | IKON INDUSTRIES |
Minimum order quantity: 01 Piece
